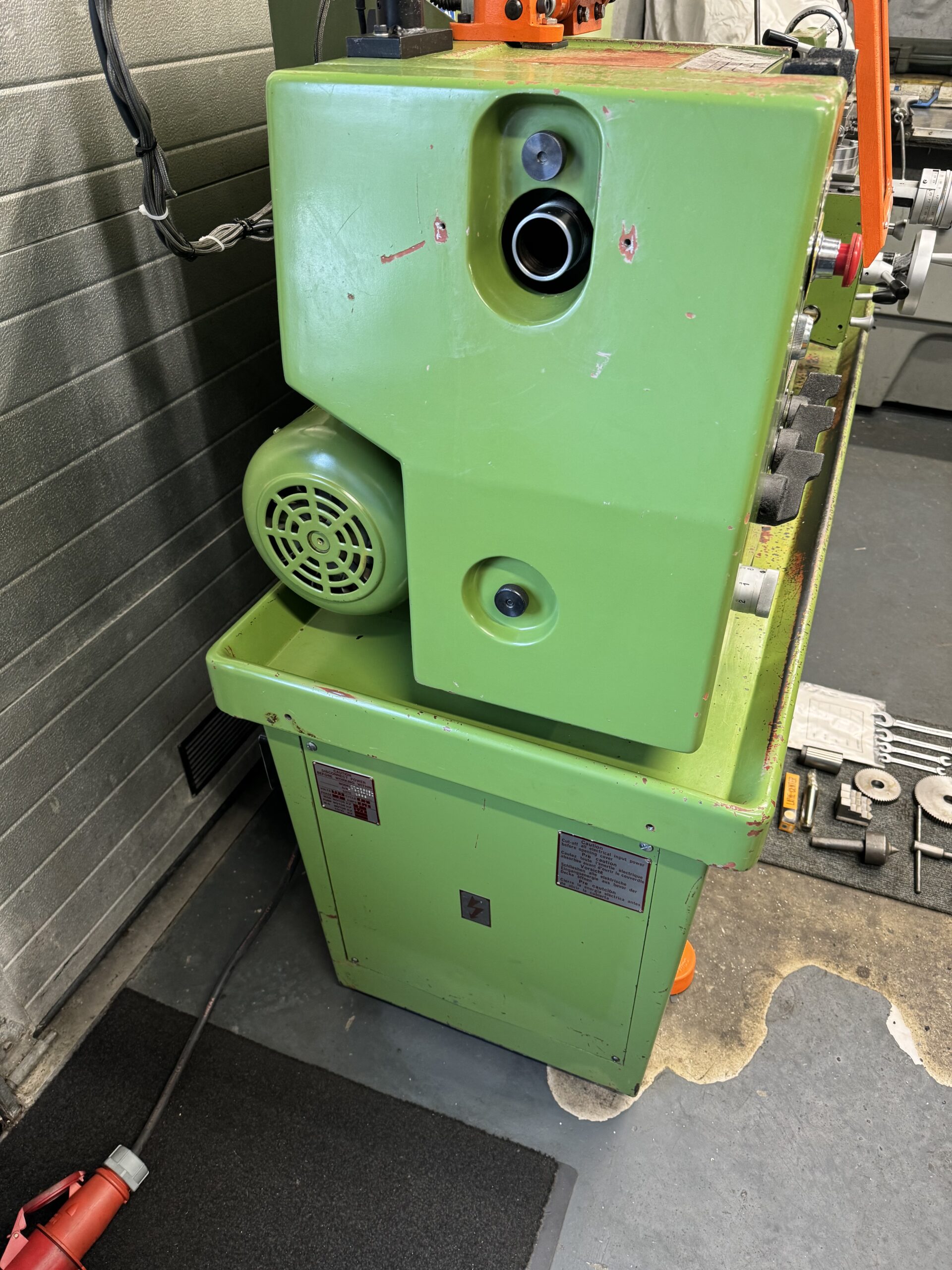

3 Phase 380v motor is running fine!

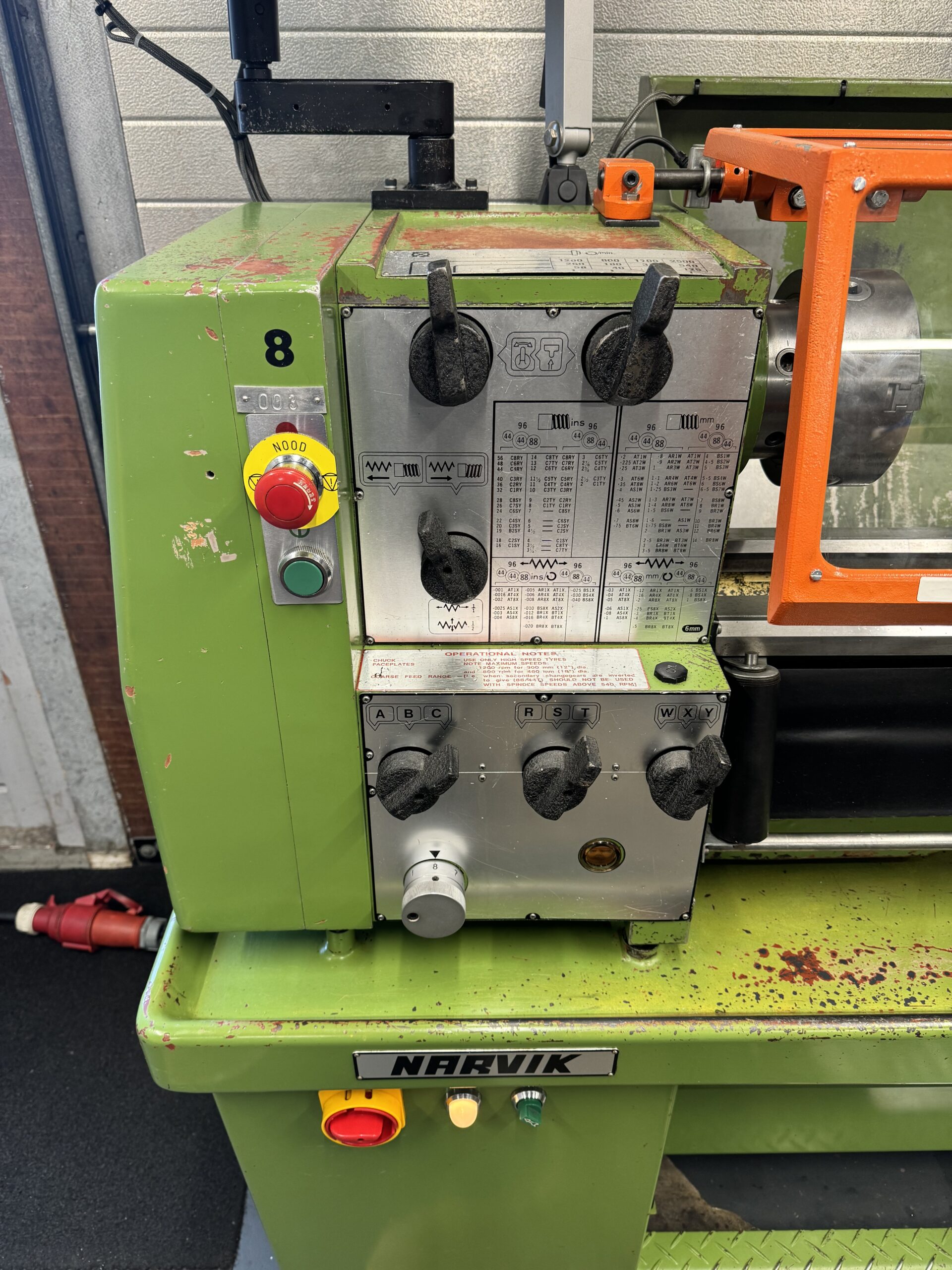

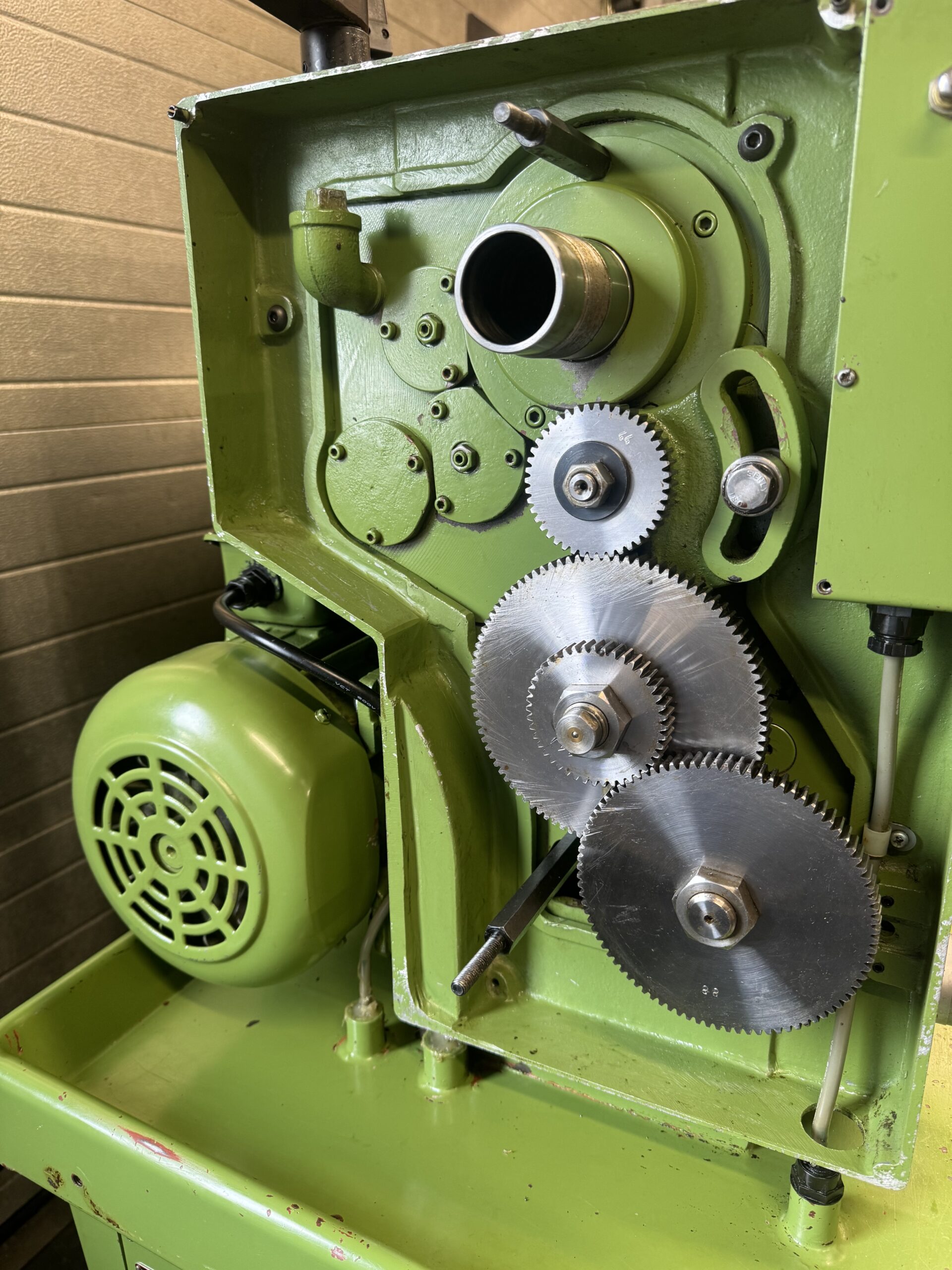

Geared headstock with 12 spindel speed’s.

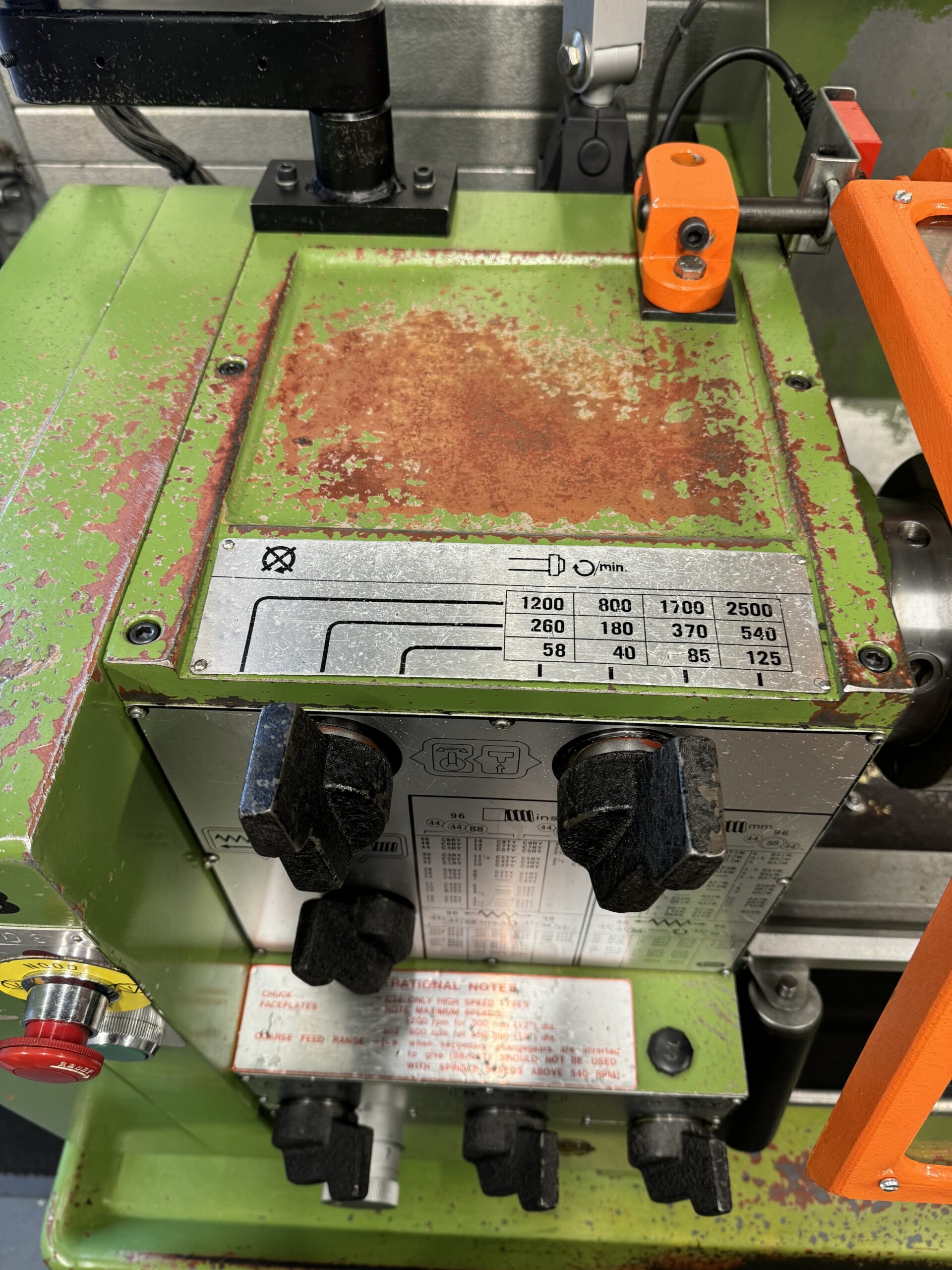

Spindel RPM adjustable from 40 up till 2500.

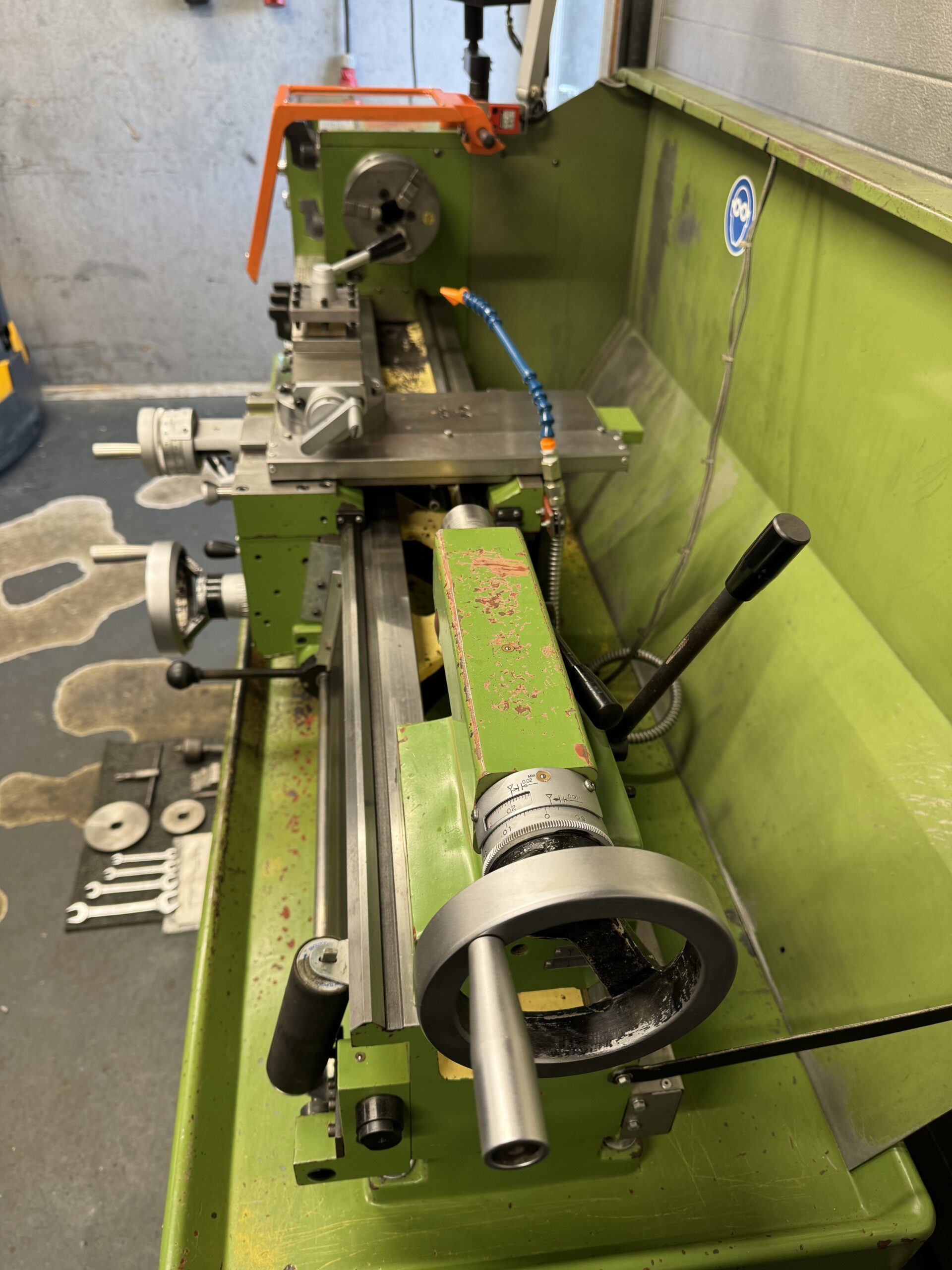

100 % Identical to the Harrison M300 long bed version.

Foot brake pedal.

Gap bed for bigger diameter turning.

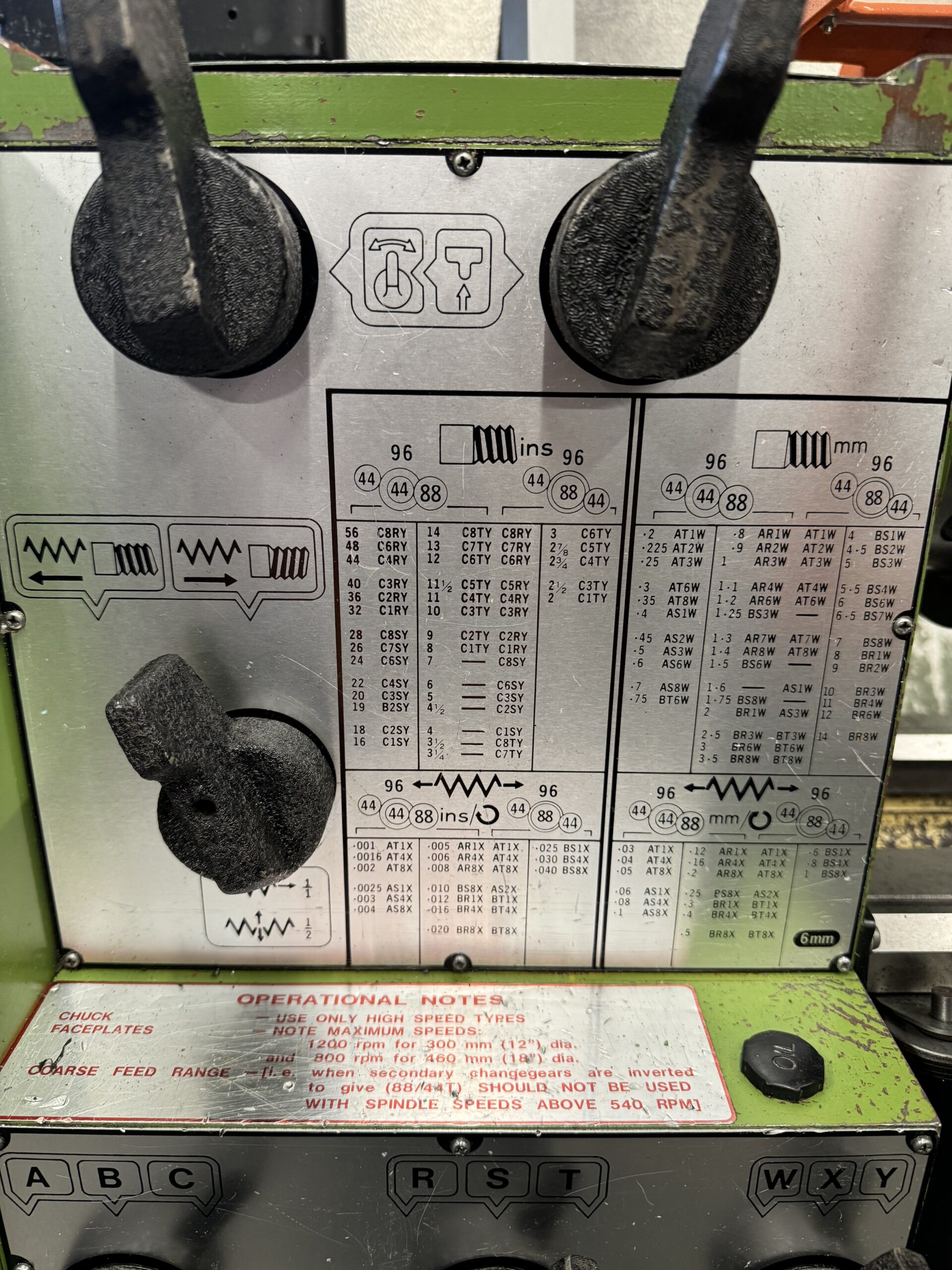

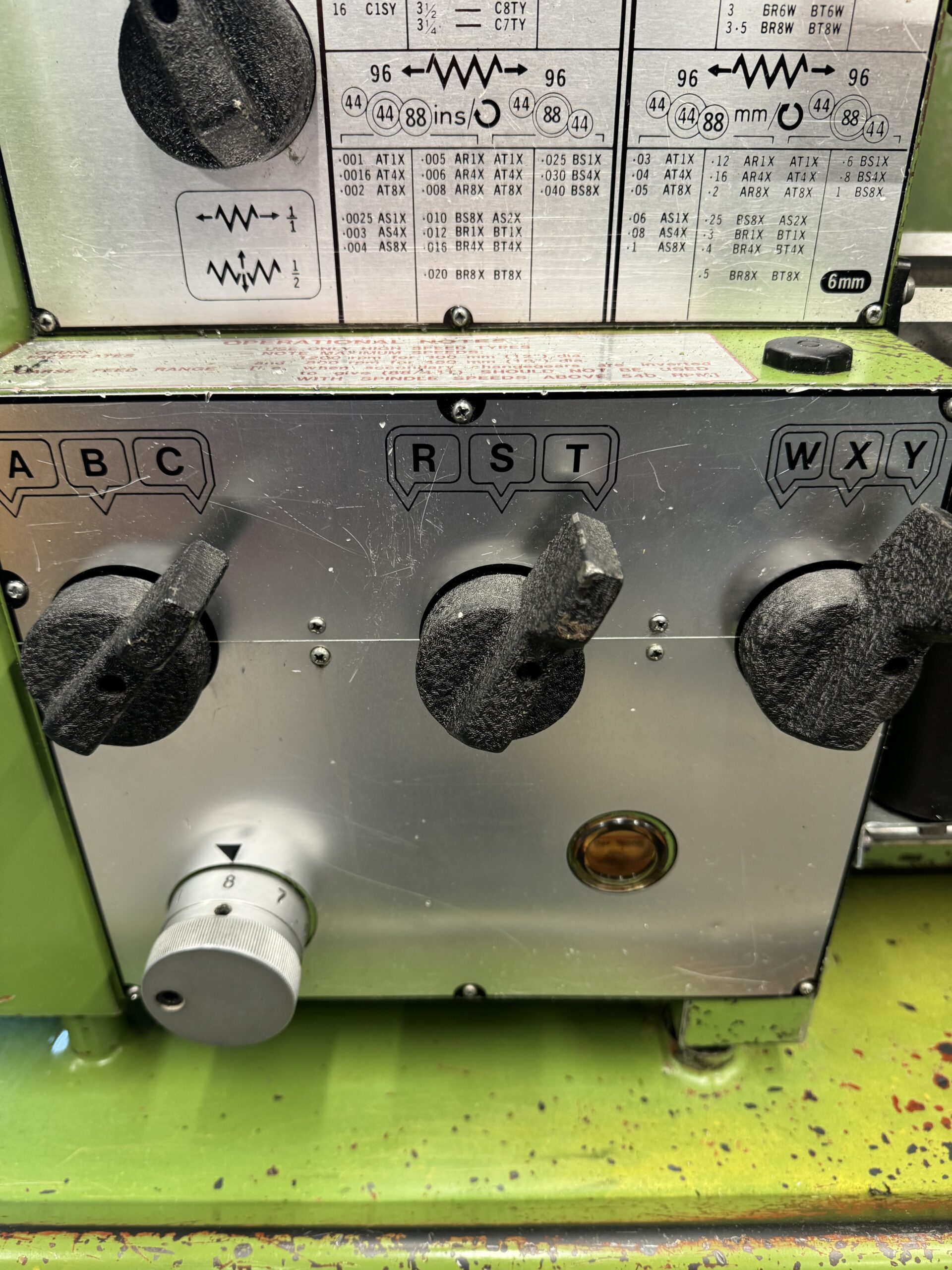

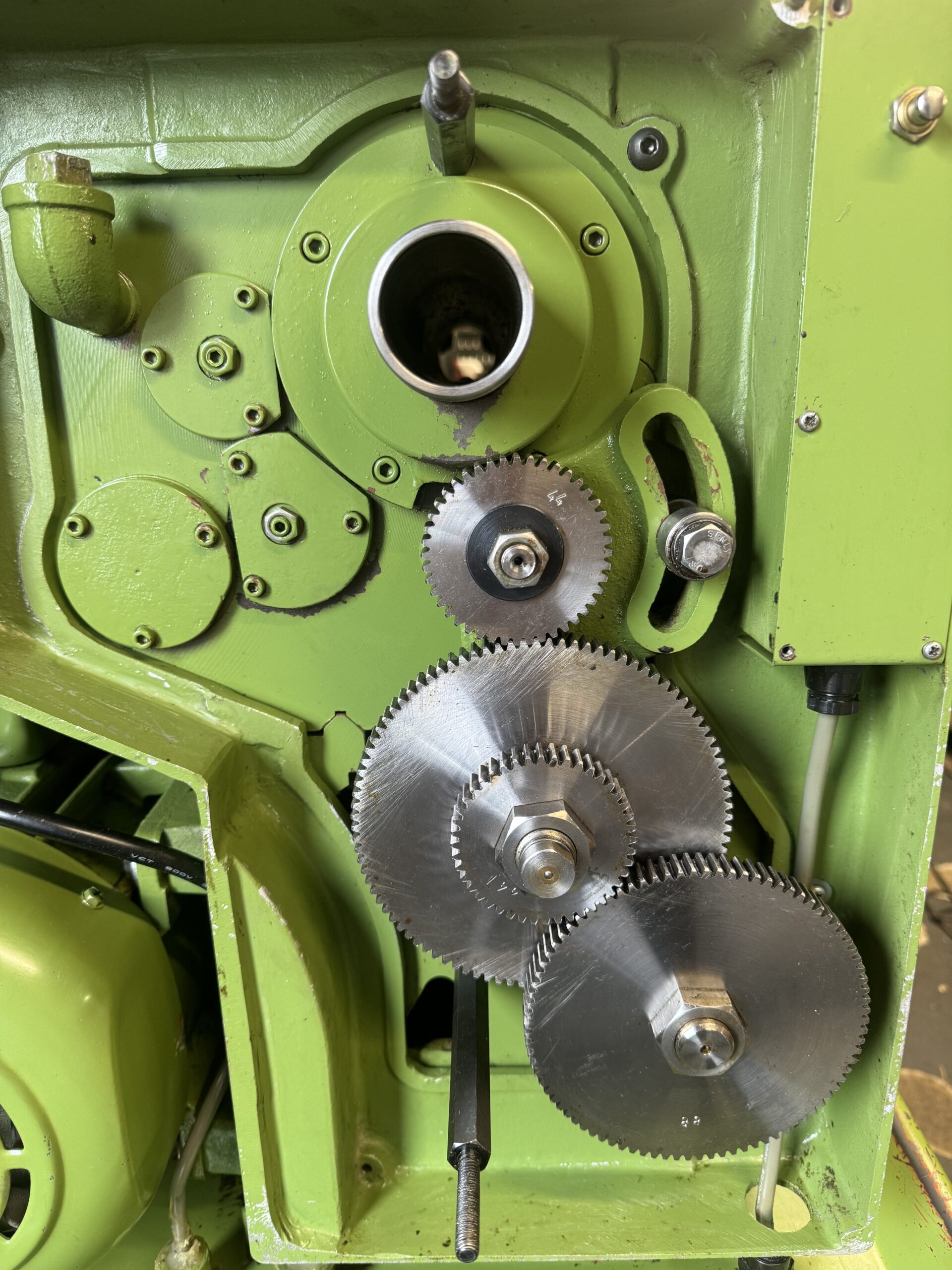

Norton gearbox for easy thread cutting.

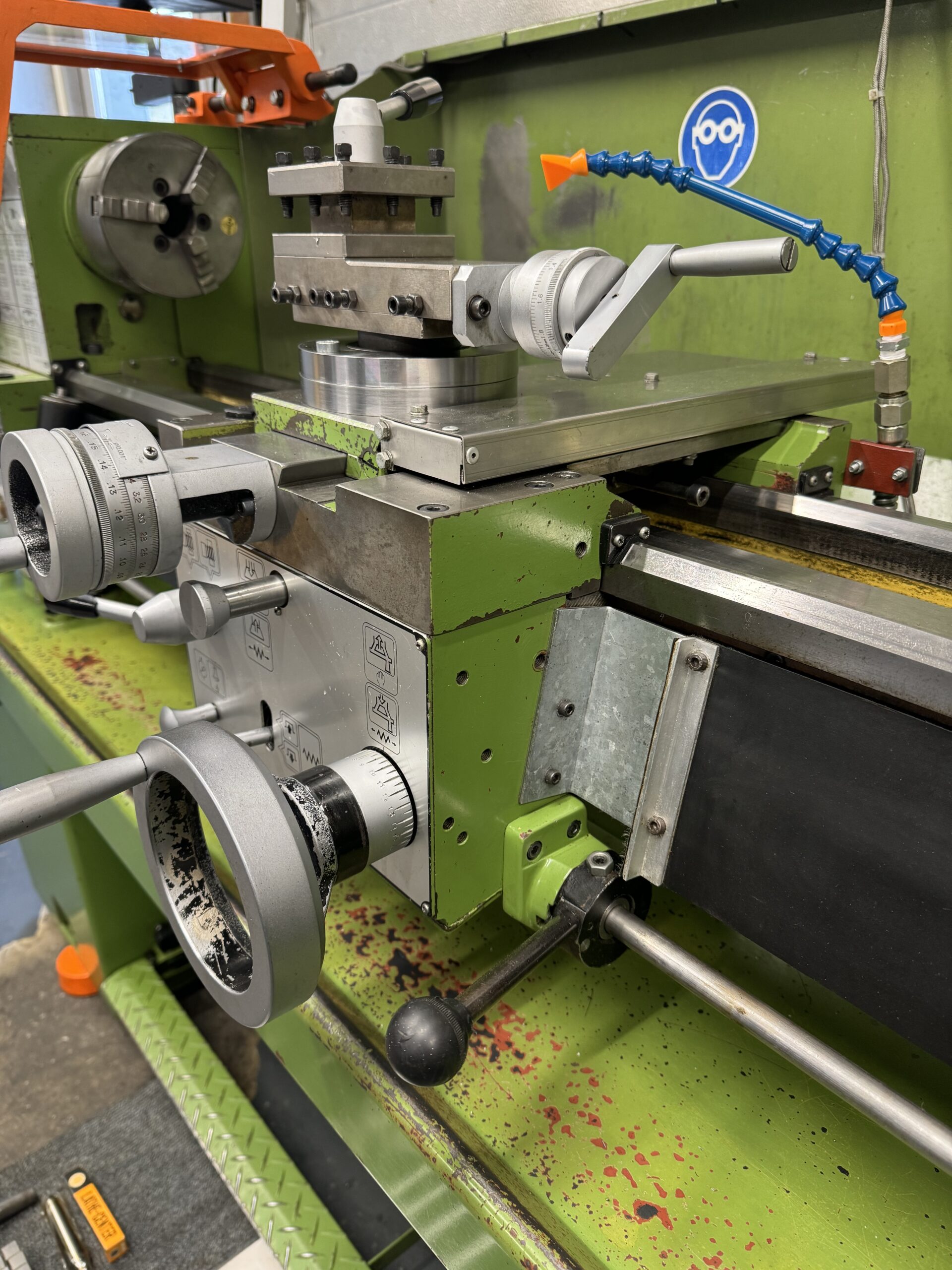

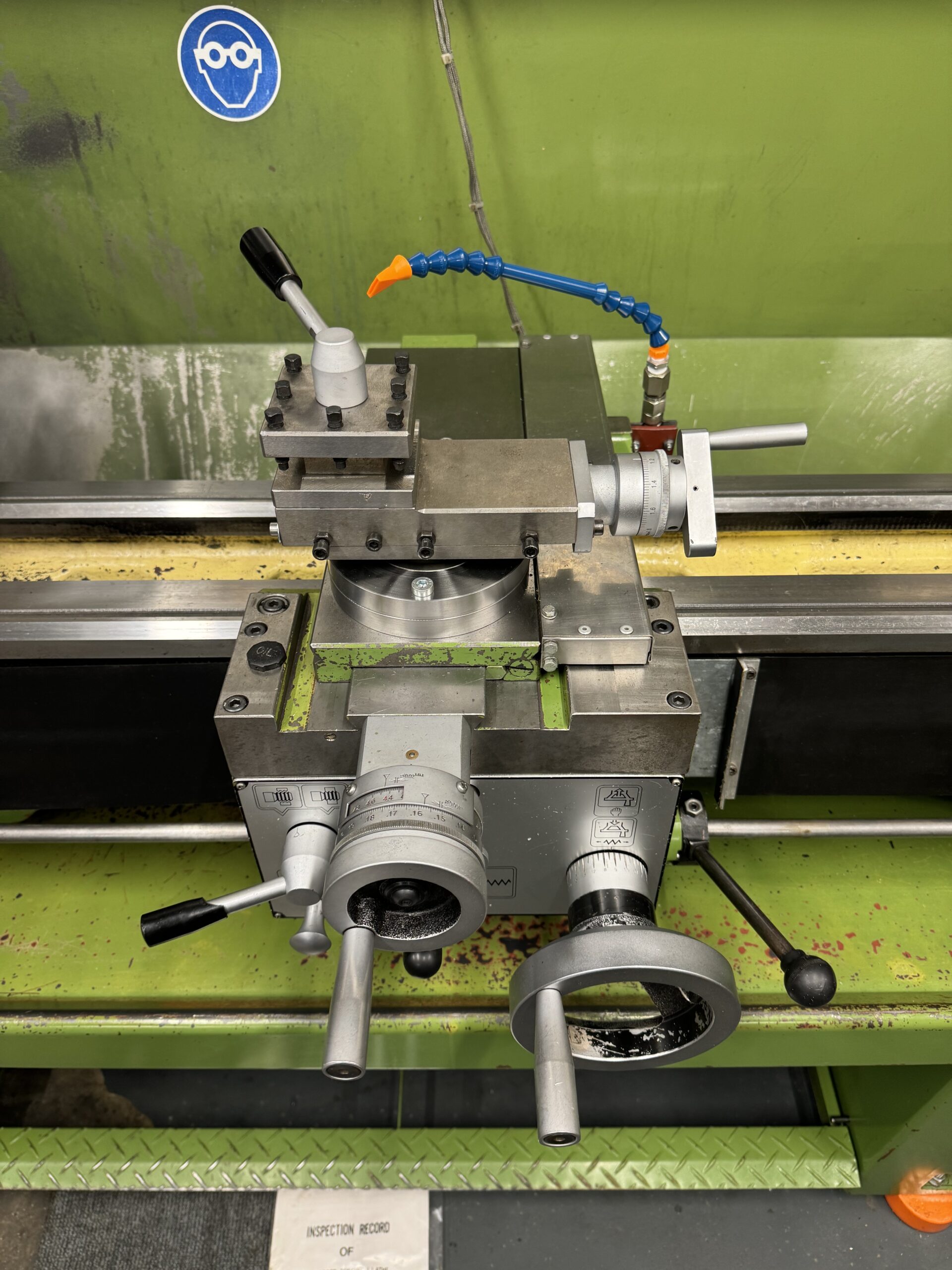

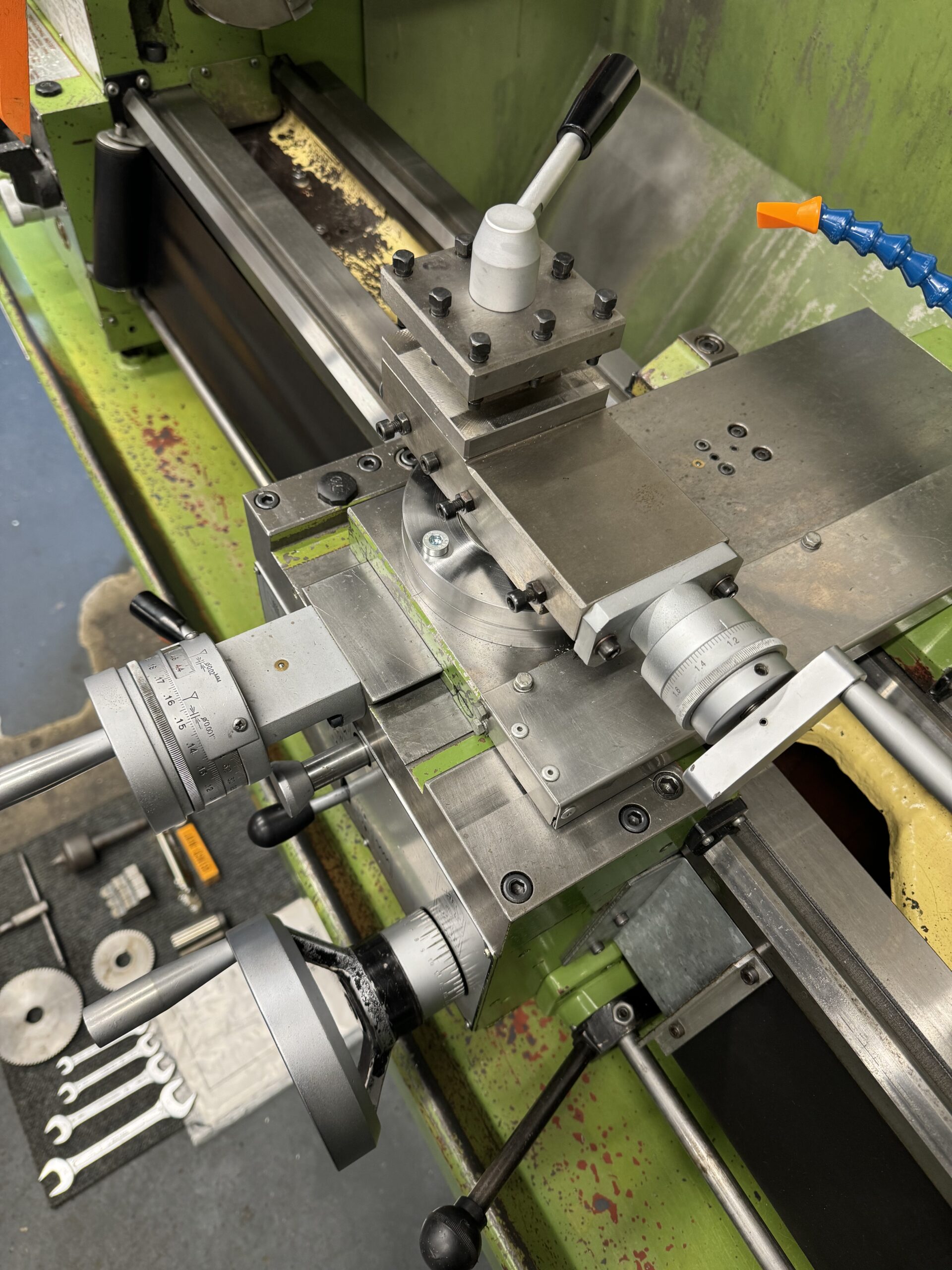

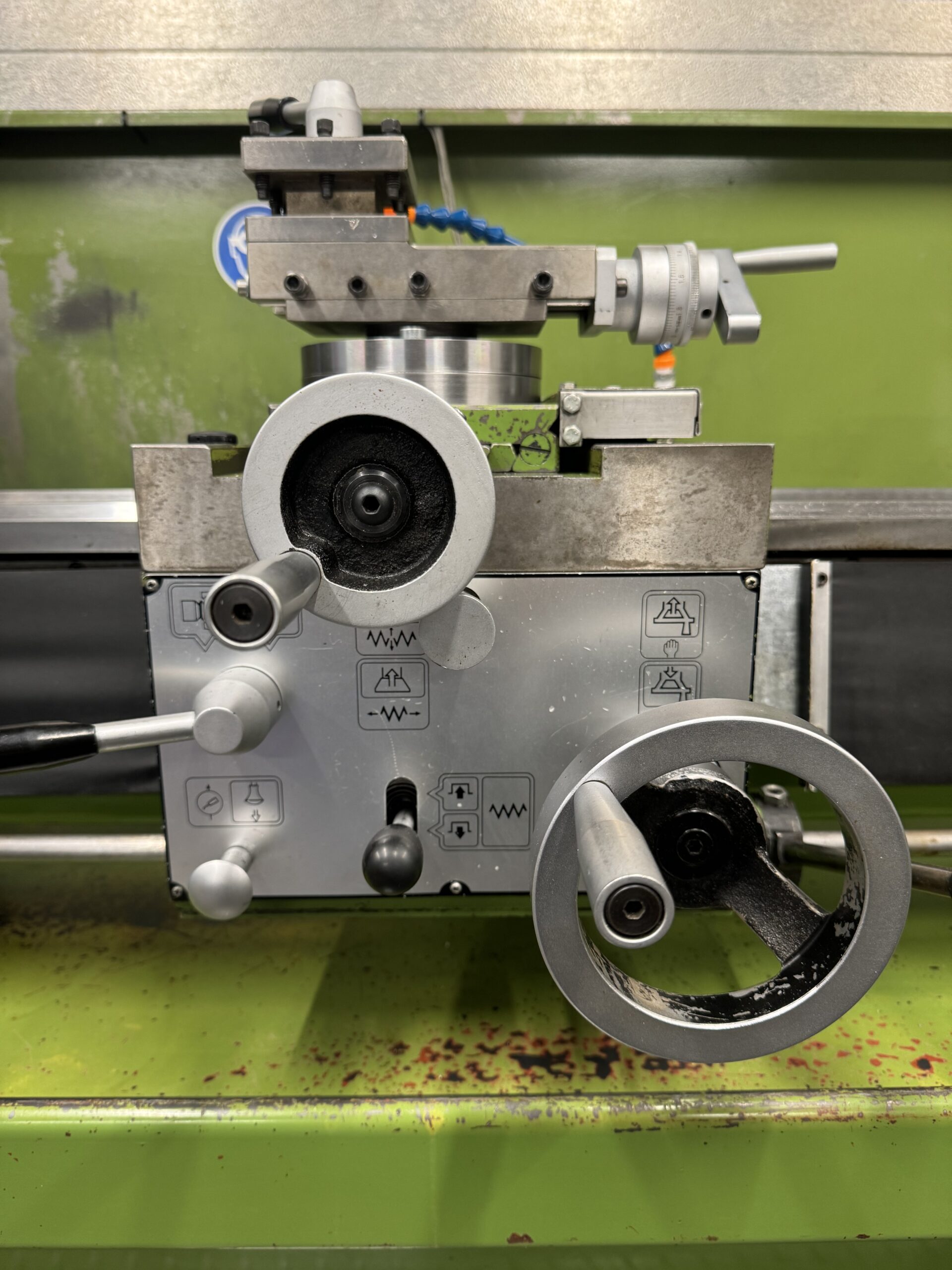

Power feed in both side as cross ways

direction.

Camlock D1-4 spindel with a MT5 inner nose.

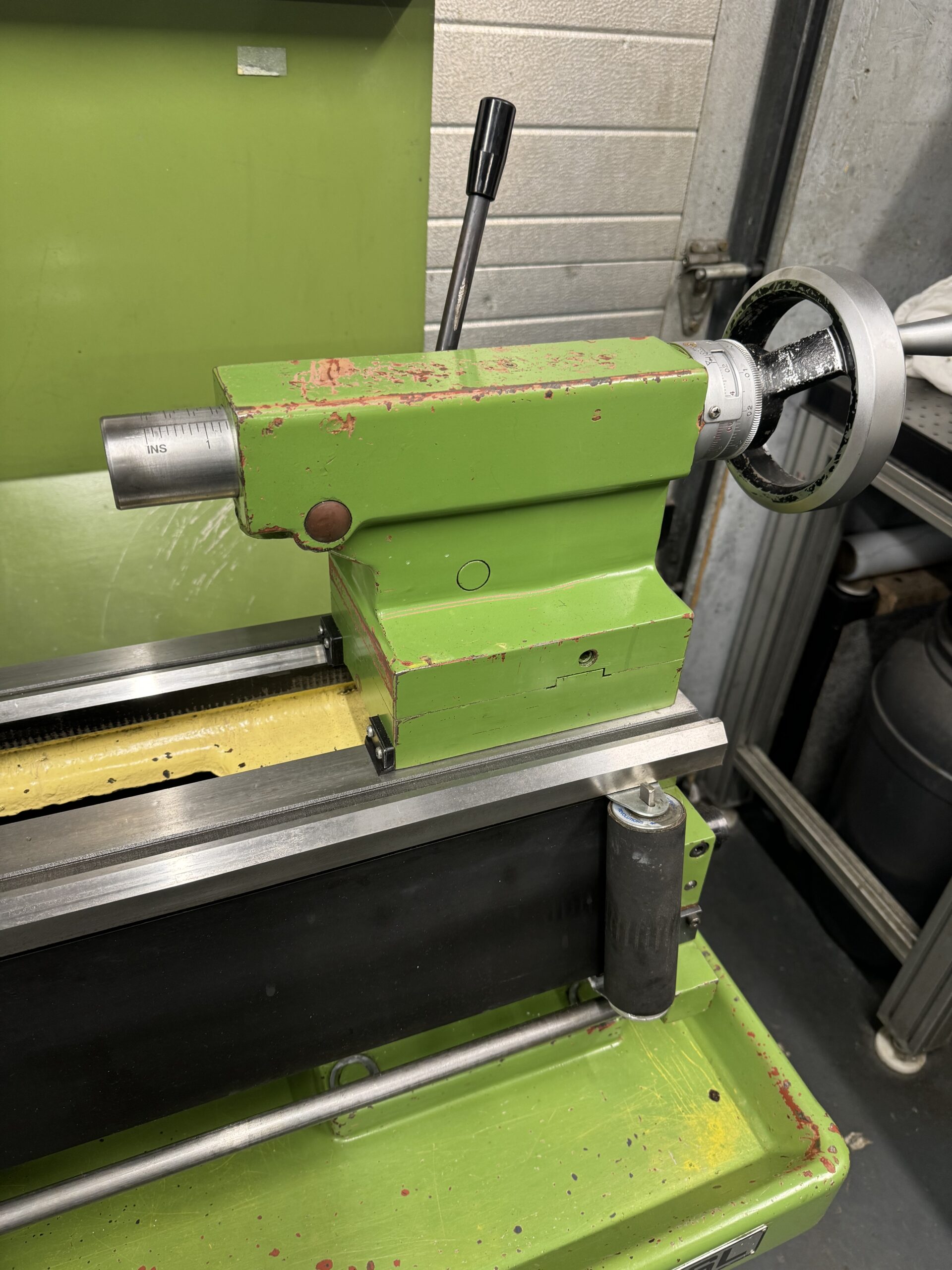

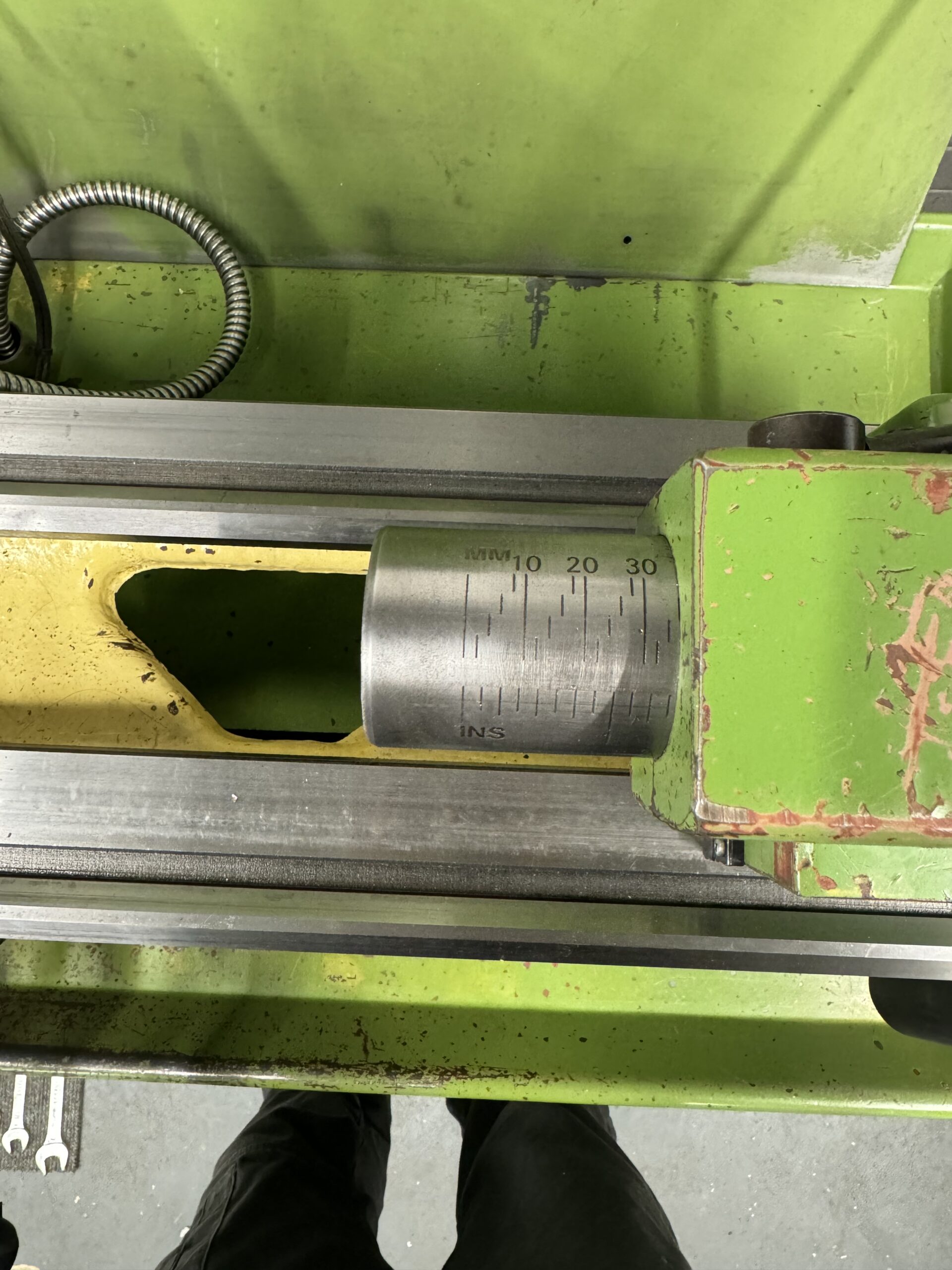

MT3 Tailstock intake.

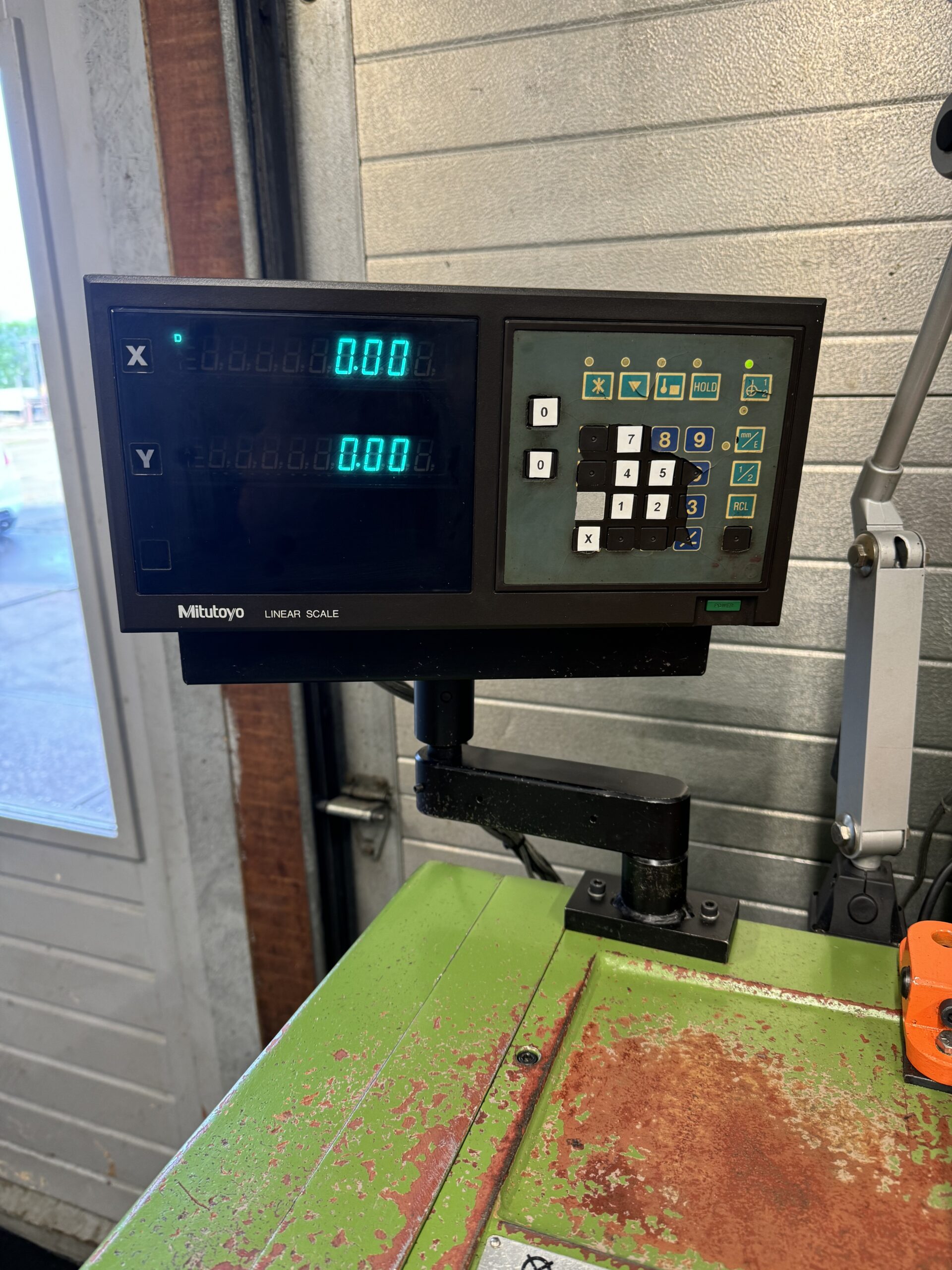

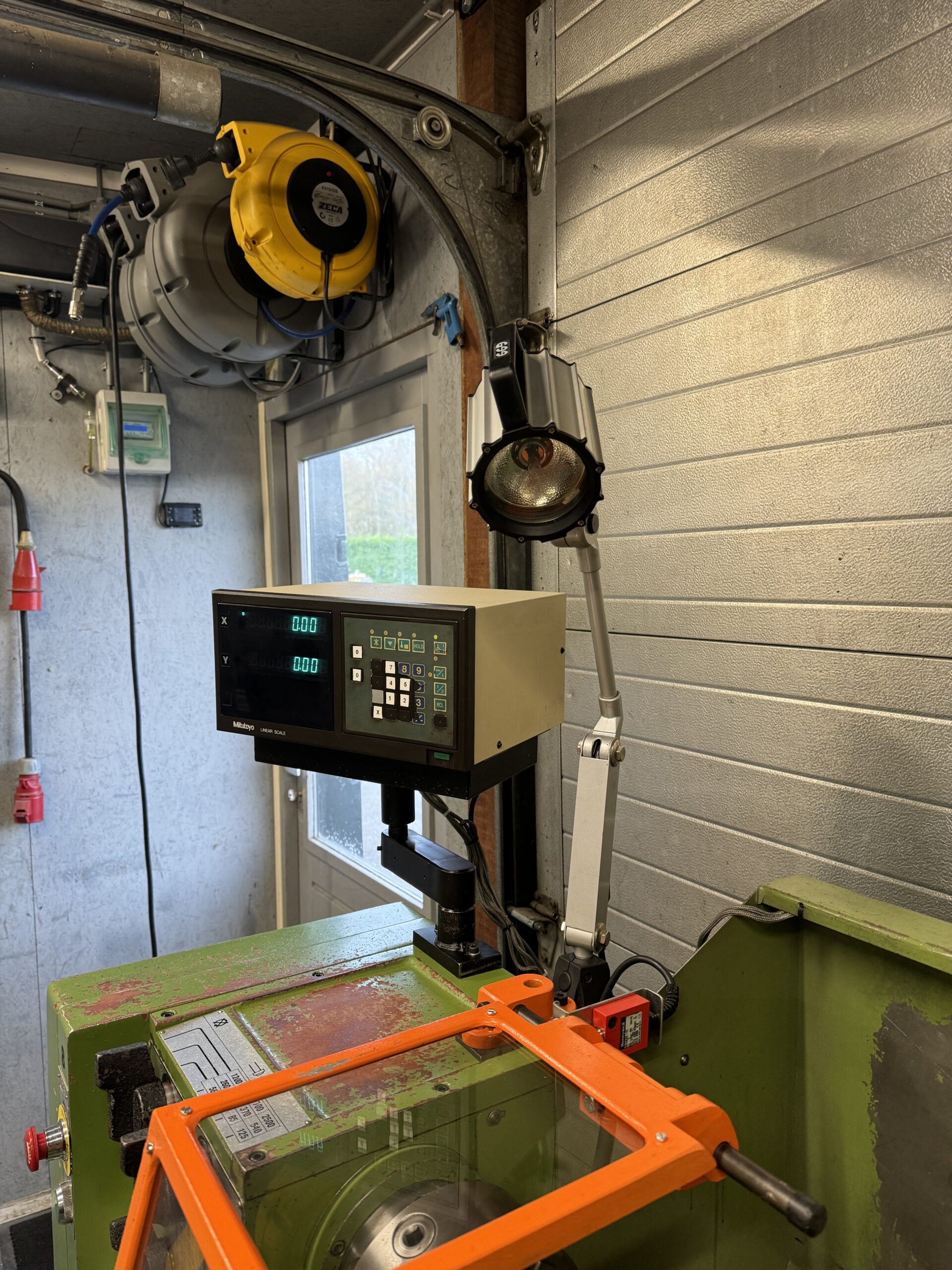

Mitutoyo 2 axis digital read out (DRO).

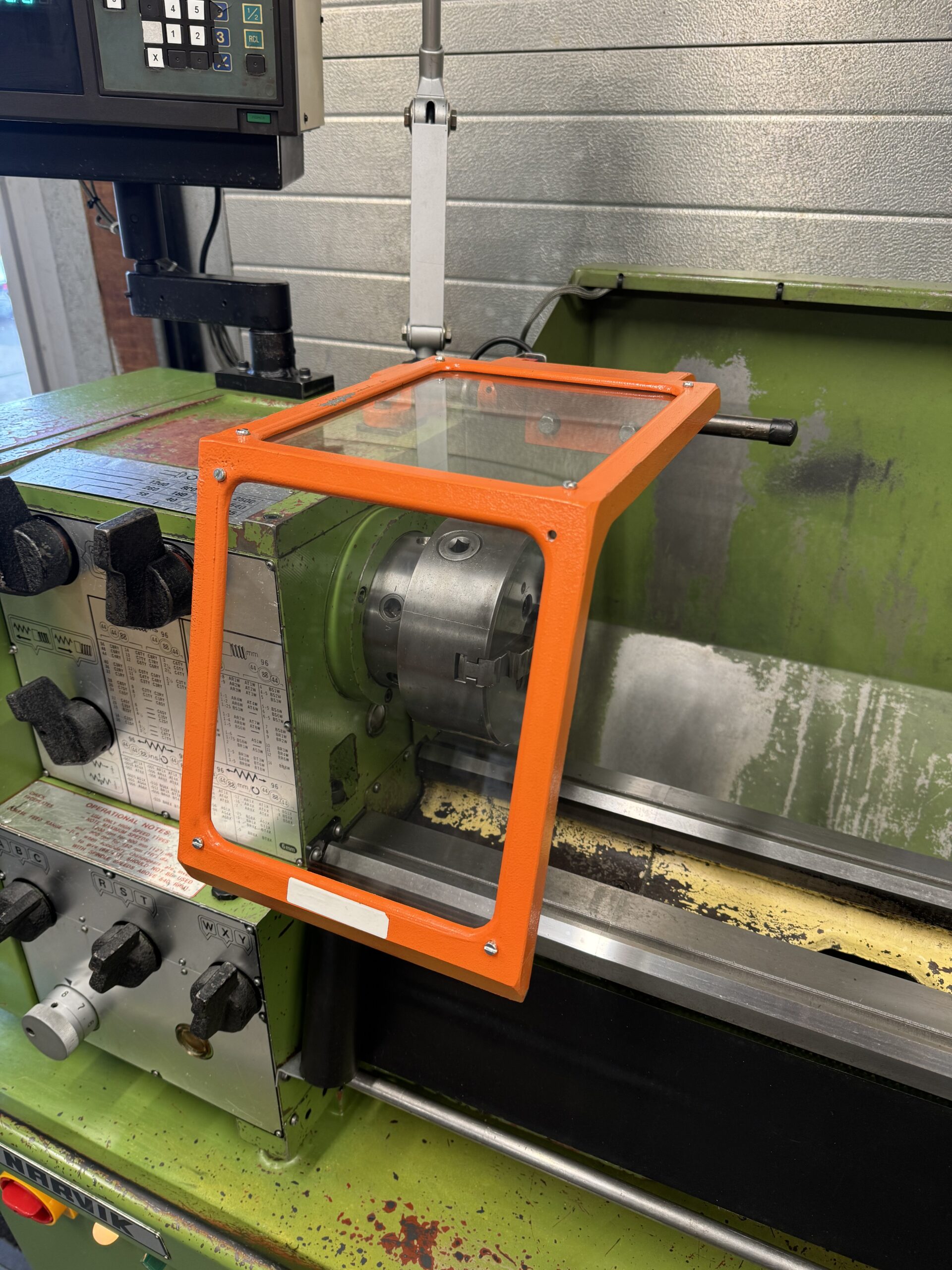

Spindel safety guard.

Machine light.
E-Stop button.

Coolant pump in base.

Year of manufacture: 1989

Distance between centers: 1050mm
Center height: 165mm
Spindel bore: 40mm

Overall dimensions: 196x75x140CM

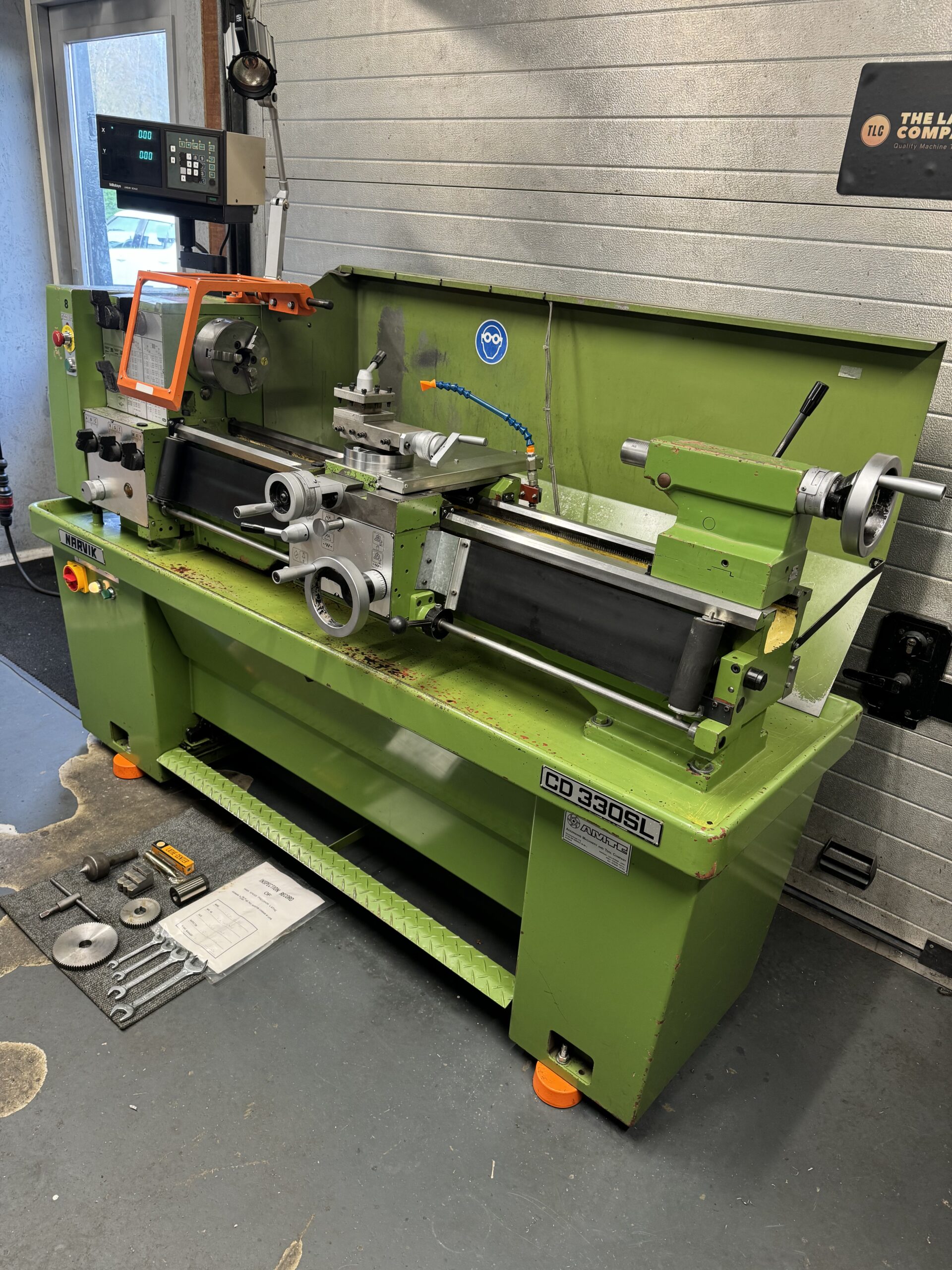

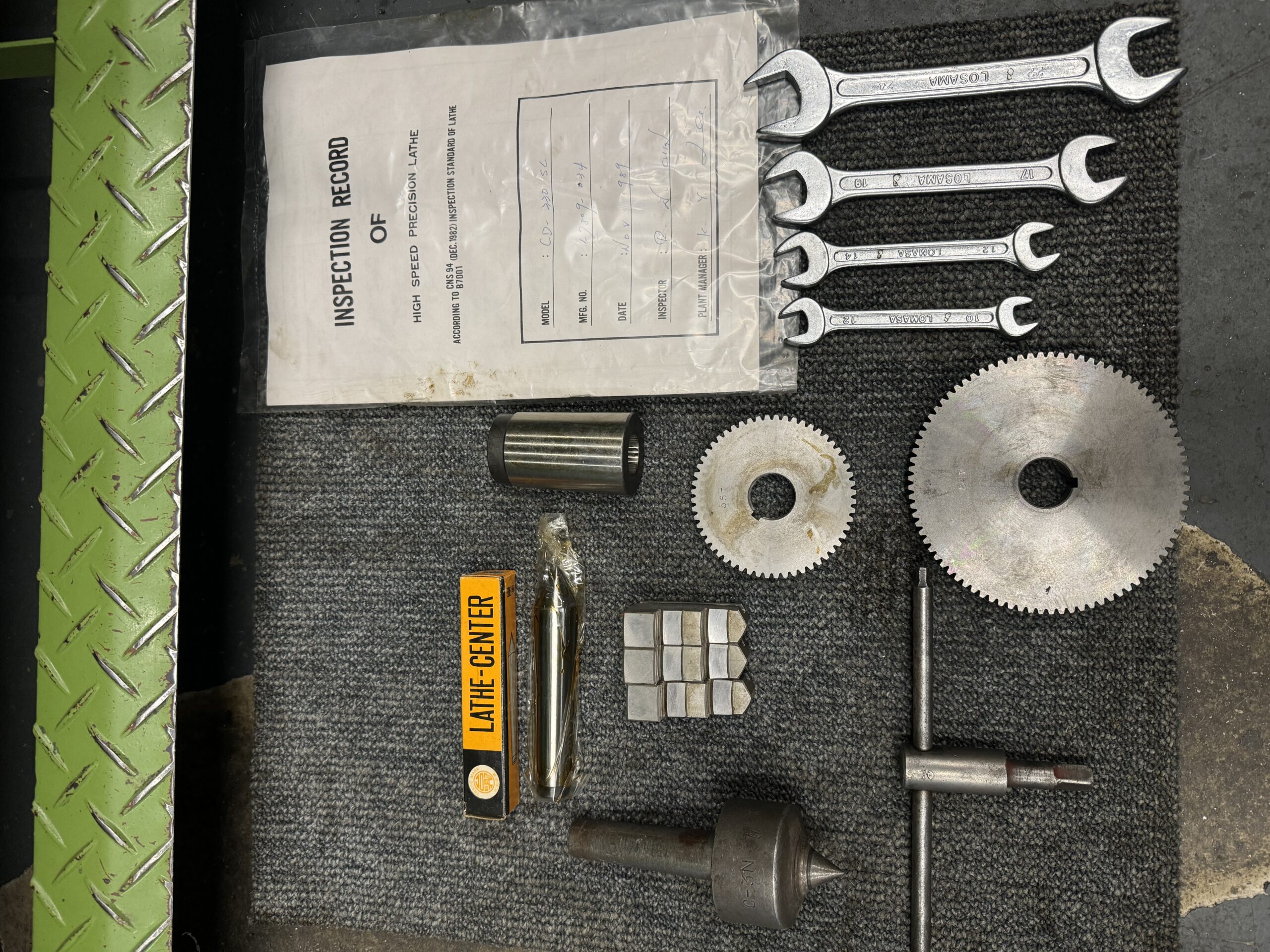

Include’s all accessories as shown on picture’s in front of the lathe.

Contact us for shipping possibilitie’s!

€ SOLD
